Potable Water Storage and Distribution System Improvements Project

Project Description:

The project involves the installation of a 140,000-gallon bolted steel water storage tank  and 6, 125 linear feet of 8-inch C900 potable water distribution pipeline with associated piping, fittings, valves, utility boxes, pressure reducing stations, fire hydrants. This Project also includes various site improvement such as the construction of a modular retaining wall, two chlorine dosing stations, perimeter fencing, asphalt pavement, earthwork, grading, electrical improvements and SCADA integration by ICAD. The tank is being installed to store water pumped from the new groundwater well source, which will be delivered to the community of Big Oak Flat through the new distribution pipeline.  This tank, pipeline and groundwater well allows the community of Big Oak Flat to be isolated from the Groveland system in the event of emergency or major drought, with the well meeting the entire water demand of Big Oak flat.  The project also supplies water at pressures and flows that will improve firefighting capabilities of the area, and hopefully improve insurance rates.

Project Cost:

$2,861,703

Funding Source:

Urban and Multibenefit Drought Relief Grant Award: $8,545,000.00

Four part project includes: AWS Pipeline Relocation, AWS Treatment Plant Relocation, Hardrock Groundwater Well, and Tank & Pipeline Project.

Community Project Benefit:

  •  Twin 140,000-gallon tanks at Vernal Dr. and Merrell Rd.
  • Replace failing and undersized water mains - 1 mile of new pipe is in the ground from the corner of Black Rd and Harper Rd to 18403 Harper Rd (approx. 5,000 linear feet).
  • 6 hydrants  and several valves are being added for improved service and resilience.
  • Providing adequate fire flow through hydrants to Big Oak Flat
  • Improve system functionality, reduce water losses

Engineer:

AM CONSULTING ENGINEERS, INC.

Contractor:

Njirich and Sons, Inc.

Excavator near a cleared dirt area with broken concrete, surrounded by trees and hills in the background.
Construction workers with an excavator and dump truck working on a site.
Construction site with excavator and bulldozer on a dirt area, surrounded by trees, and a person standing nearby.
Construction site on a hill with dirt, a porta-potty, utility pole, and trees under a clear blue sky.
Construction site with an excavator, utility truck, and a green tank with solar panels.
An excavator digging a trench next to a building and a fence, with a worker inside the machine.
Construction site with workers, an excavator, cables in trenches, and a large round structure with solar panels.
Construction site with dirt, wooden frames, a truck, and heavy machinery, near a large metal tank and trees.

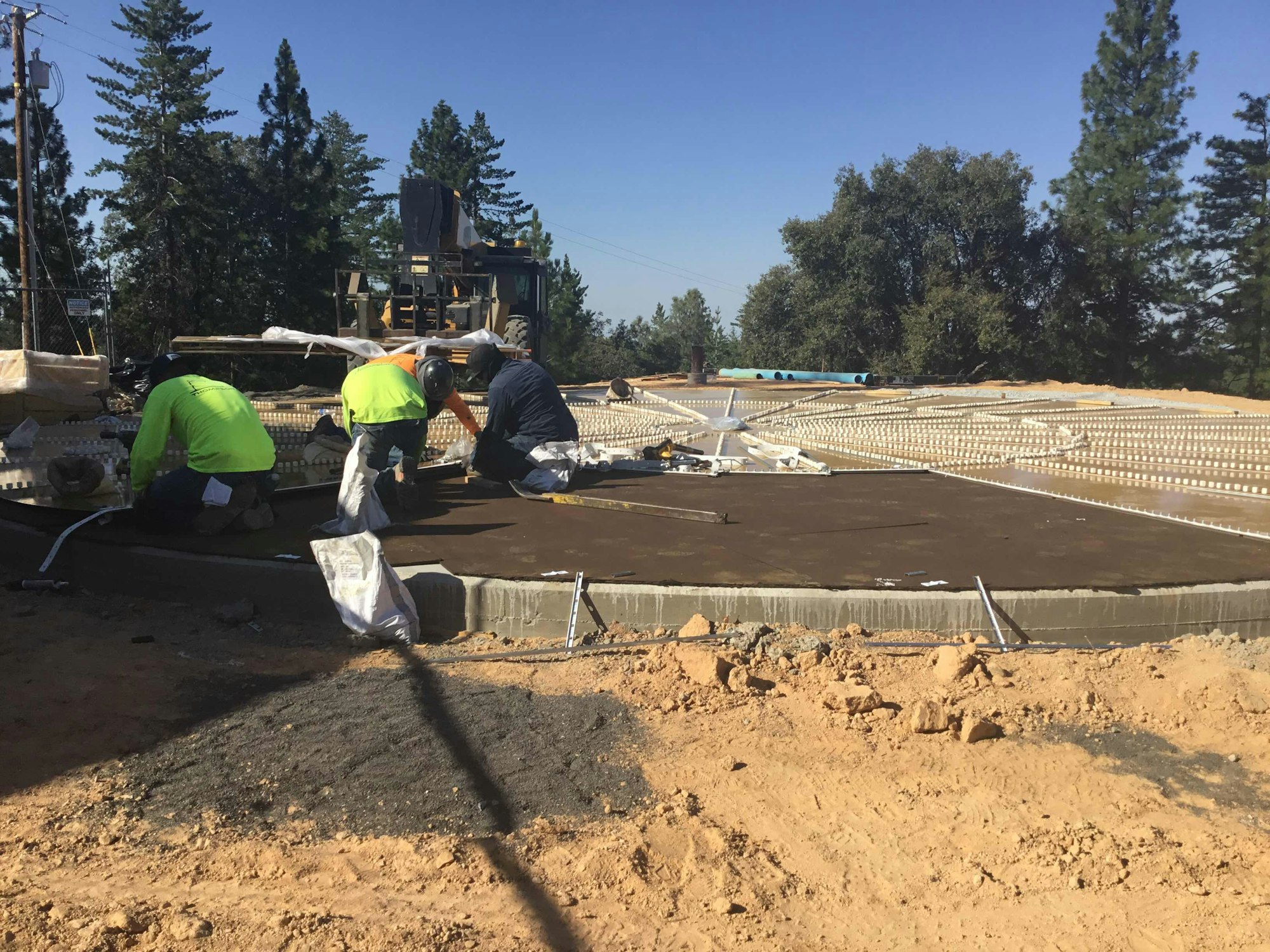

Three construction workers in safety gear working on a concrete foundation at a construction site with machinery and trees in the background.
Construction workers pouring concrete into a circular wooden formwork on a sunny day.
Two workers in safety gear handling a large metal panel at a construction site with a crane and trees in the background.
Two people working near a large white cylindrical tank on a dirt ground.

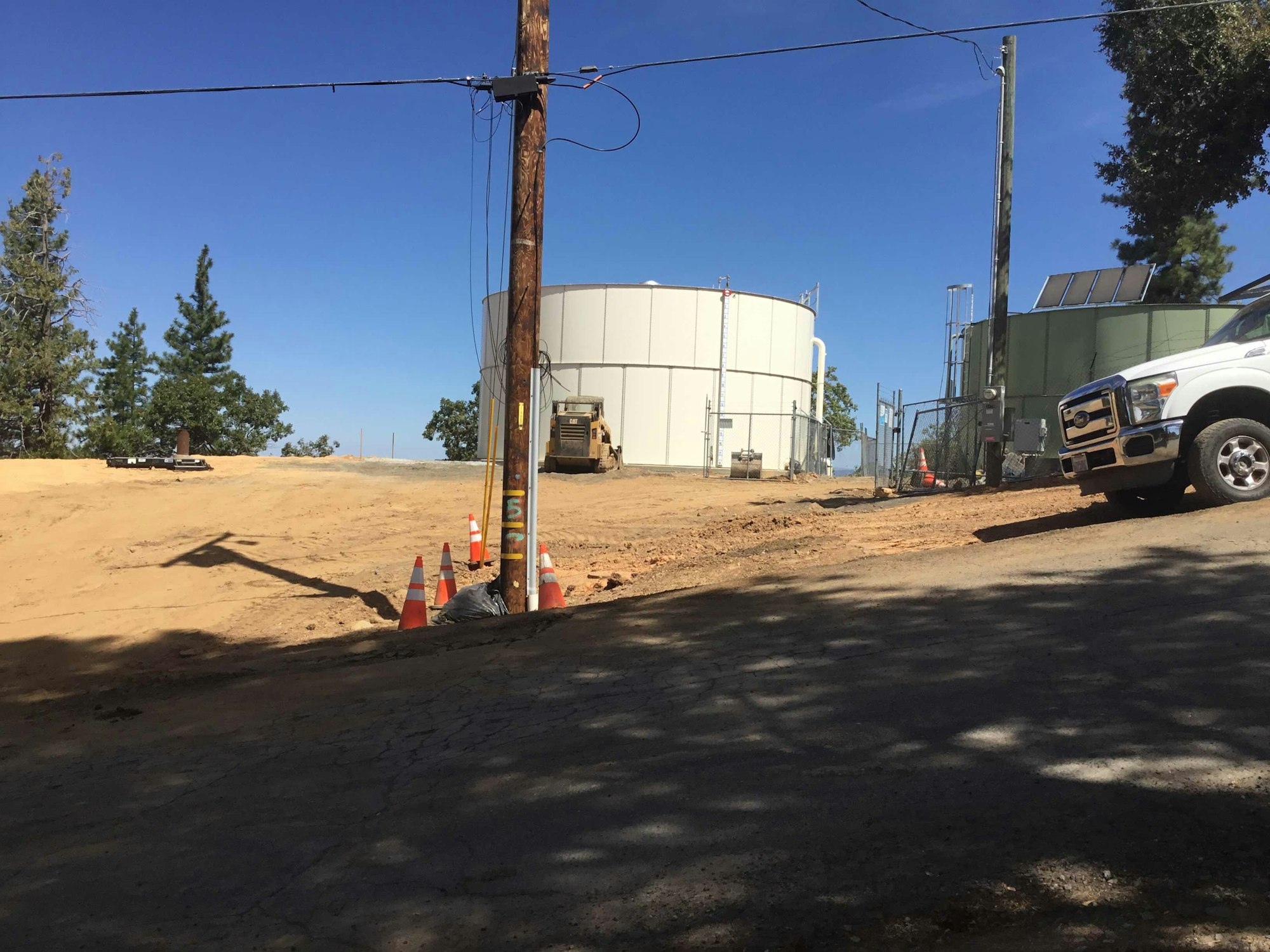

A construction site with large tanks, cones, a truck, and trees under a clear blue sky.

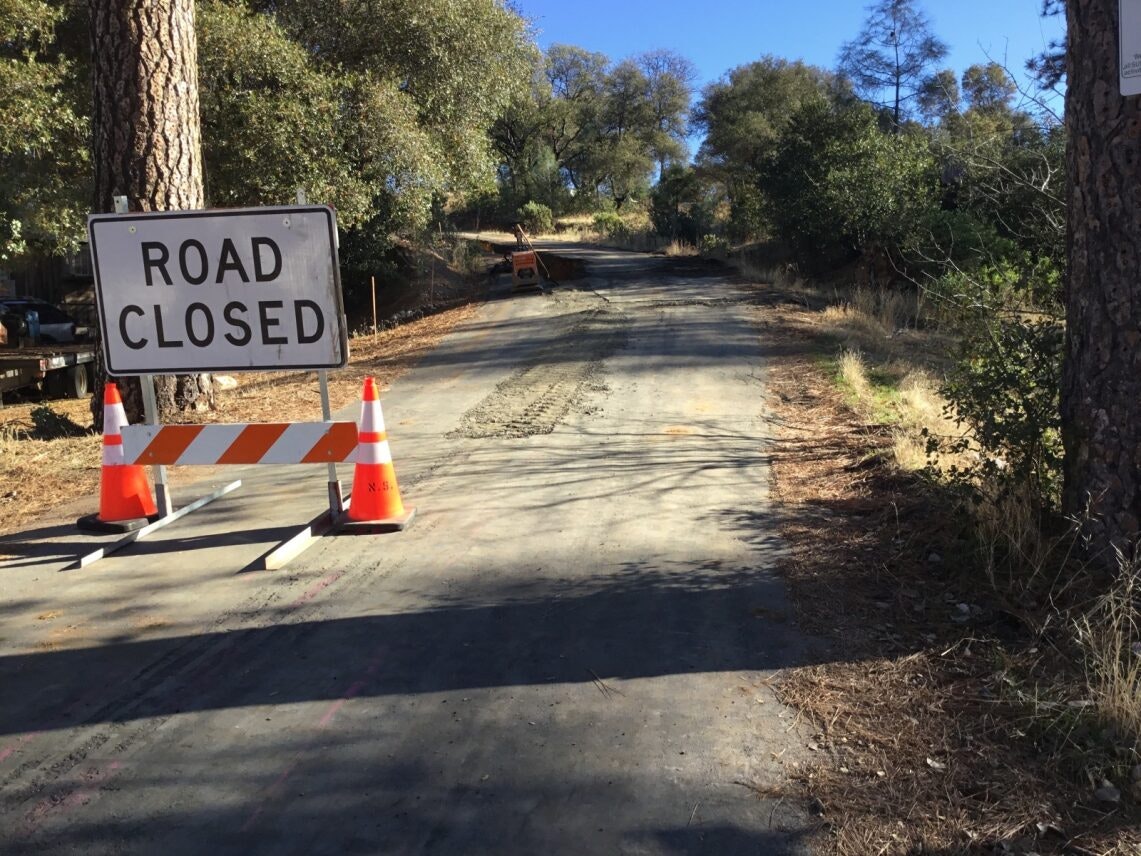

A "Road Closed" sign with traffic cones blocks a rural road amid trees.
A narrow trench dug alongside a rural dirt road with some tools and clothes lying nearby.

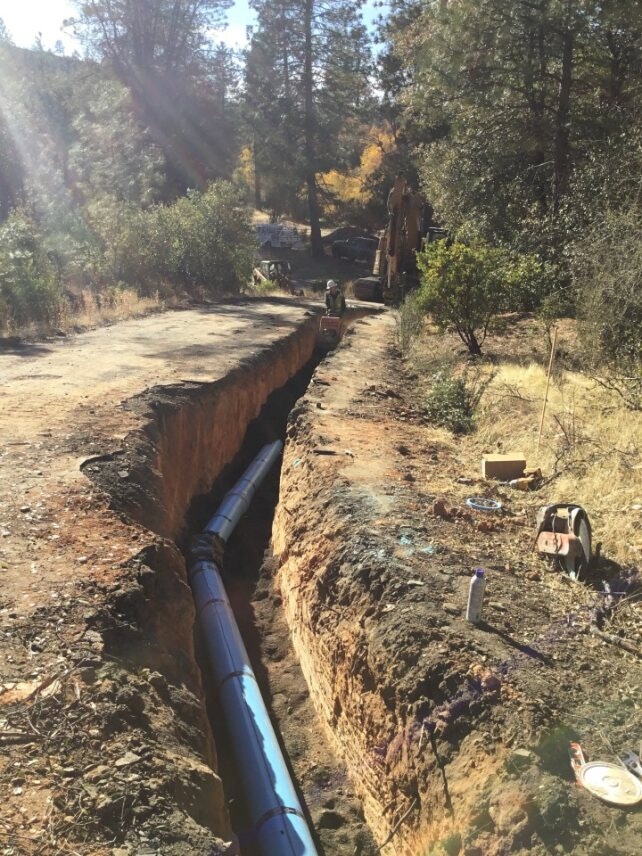

Workers installing a large blue pipe in a trench with a backhoe nearby, surrounded by trees and a clear blue sky.
Construction site with a trench and installed pipeline, surrounded by trees and equipment.

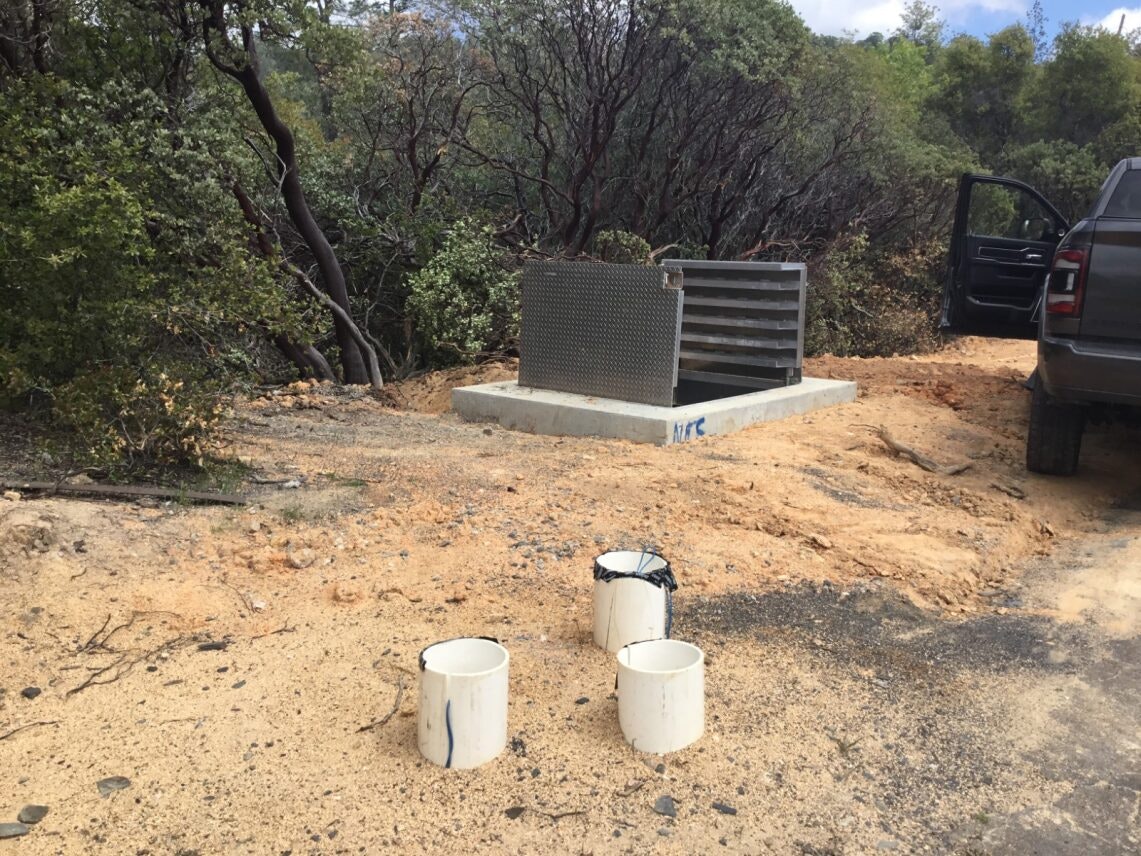

Outdoor scene with a truck, a metallic structure on a concrete base, and three white buckets on the ground near trees.
A complex arrangement of industrial valves, pipes, and connectors in a concrete enclosure, with blue and red components.
Construction site with an excavator, bulldozer, and a worker in a helmet, surrounded by dirt and debris.
A construction site with a trench, blue pipe installation, worker, equipment, and a fence with traffic cones nearby.
A blue pipeline being installed in a trench, with tools and equipment scattered around the site.
A yellow fire hydrant is being installed or repaired in an excavated hole in the ground.
